NX-5200K3 IN STOCK






NX-5200/5300





Main Features

  • Multi-Digital operation in P25 (Phase 1 & 2) and NXDN™ protocols
  • Mixed Digital & FM Analog Operation allows intelligent migration in mixed sites and easy migration with digital radios in other sites
  • Large, Color 1.74" (240 x 180 pixels) Transflective TFT Display for better interface even in direct sunlight and with use of polarized sunglasses.
  • Easy to follow GUI for at-a-glance operational status checking and Multi-line Text to convey more information
  • 4-way Directional-pad (D-pad) and 2-Position Lever Switch for intuitive control and operation
  • Built-in GPS Receiver / Antenna for effective fleet management
  • Bluetooth® Module built-in for hands-free operation
  • Active Noise Reduction (ANR) utilizing built-in DSP with two microphones for suppression of ambient noise
  • Renowned KENWOOD Digital Audio Quality
  • Built-in 56-bit DES Encryption
  • Optional 256-bit AES Encryption
  • Built-in Motion Sensor for life-critical man-down detection
  • microSD / microSDHC Memory Card Slot for increased memory capacity for “Voice & Data”
  • Intelligent battery system (Option)



General Features

Frequency Range
  • VHF: 136-174 MHz (NX-5200)
    UHF: 380-470 MHz, 450-520 MHz, (NX-5300)
    700-800MHz: RX: 763-776, 851-870MHz TX: 763-776, 793-806, 806-825, 851-870MHz (NX-5400)

  • RF Output
  • VHF: 5 W (NX-5200)
    UHF: 5 W (NX-5300)
    700-800MHz: 3 W (NX-5400)

  • Maximum of 4,000 CH / Radio capacity, 512 CH / Zone, 128 Zones
  • 6 Front & 2 Side PF keys
  • 12-Key Keypad Models Available
  • Emergency / AUX Key
  • Color 1.74" (240 x 180 pixels) Transflective TFT Display
  • Color GUI and Multi-line Text Display
  • 1 W "Laud" Speaker Audio
  • MIL-STD-810 C / D / E / F / G
  • IP54 / 55 (Dust & Water) IP67 / 68 (2 hours at a depth of 1 meter)

Digital Features

P25 MODE

  • P25 Conventional / Trunked
    (Phase 1 / Phase 2) Protocol
  • AMBE+2™ Enhanced Vocoder
  • Talk Group ID Lists
  • Individual ID Lists
  • Caller ID Display
  • Remote Monitor / Remote Check
  • Radio Inhibit
  • Encryption Key Zeroize & Retention
  • P25 GPS Location
  • P25 Over-the-Air Re-keying
  • P25 Over-the-Air Programming*2

NXDN™ MODE

  • NXDN™ Conventional / Trunked Protocol*1
  • AMBE+2™ Enhanced Vocoder
  • 6.25 & 12.5 kHz Channel Spacing
  • Over-the-Air Alias
  • Over-the-Air Programming*2
  • Paging Call
  • Emergency Call
  • All Group Call
  • Status Messaging*3
  • Remote Stun / Kill*3
  • Remote Check*3
  • Short & Long Data Messages*3
  • GPS Location
  • NXDN™ Digital Scrambler Included
  • *1: Only supports TYPE-C Protocol
  • *2: Requires KENWOOD OTAP Management software.
  • *3: Requires NX subscriber unit PC serial interface compatible software application (e.g. KENWOOD AVL & Dispatch Messaging software) or hardware (e.g. console)

ANALOG Features

FM MODE

  • Conventional & LTR® Zones
  • FleetSync® / II : PTT ID ANI / Caller ID Display, Selective / Group Call, Emergency Status / Text Messages
  • MDC-1200 : PTT ID ANI / Caller ID Display, Emergency, Radio Check / Inhibit
  • QT / DQT & Two-Tone
  • Built-in Voice Inversion Scrambler
  • NXDN™ is a registered trademark of JVCKENWOOD Corporation and Icom Inc.
  • LTR® is a registered trademark of E.F. Johnson Company.
  • AMBE+2™ is a trademark of Digital Voice Systems Inc.
  • Bluetooth® is a registered trademark of Bluetooth SIG,Inc.
  • SD and microSD are trademarks of SD-3C, LLC in the United States, and/or other countries.










IN STOCK!

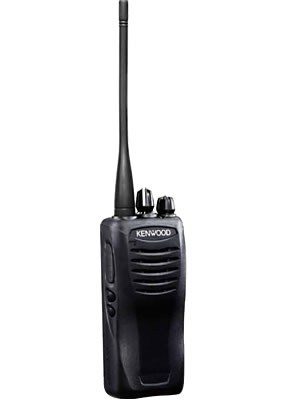

TK-24/3402


A Basic Radio For Institutional Use Or Light Firefighting Duties


KENWOOD's TK-2402V/3402U portable radios deliver professional performance, enhanced features such as scan, built-in VOX, a long battery life, as well as a sleek design. Offering 5 watts of power and MIL-STD810 & IP54/55 weatherproofing, these portables have been expertly engineered to perform in the toughest of environments.

Compact Design


The rounded contours of the TK-2402V/3402U provide a superbly comfortable grip, while the non-slip elastomer channel knob with improved torque characteristics and an enlarged PTT button ensure positive tactile response during operation.

Tough & Water Resistant


Built to perform in the toughest environments, the TK-2402V/3402U has passed the demanding IP54/55 dust and water intrusion tests – both with and without an optional speaker microphone. It also meets or exceeds 11 stringent MIL-STD 810 C/D/E/F/G environmental standards, including “driven rain”.

Enhanced Audio Quality


As an experienced audio specialist, KENWOOD has drawn on decades of expertise to ensure that the sound quality of TK-2402V/3402U is undeniably clearer and crisper, as well as loud – thanks to the 36mm-diameter speaker, which delivers up to 1 watt audio output.

Ultimate Performance


Output Power is 5W for both VHF (TK-2407) and UHF (TK-3407). Additionally, the UHF frequency coverage on the TK-3407 is 70MHz.

Multiple Signaling


QT / DQT / DTMF
FleetSync® PTT ID, SelCall
2-tone (encode/decode)
5-tone (encode/decode)*
Built-in MDC-1200 signaling

FleetSync® and MDC-1200 signaling can be independently selected for each zone. Switching is as simple as changing zones.

*Feature available

Channels


The TK-2402V/3402U provides ample capacity for operating with multiple channels or radio systems, as well as a Channel Stopper option to provide guidance in selecting the intended channel.

2 Programmable Function Keys


Both PF Keys can be programmed for any of the many functions available, permitting customization to suit your specific requirements. Either key can also be programmed for an Emergency function.

Lone Worker


This ingenious feature provides an extra layer of security for individuals who work in remote or hazardous areas. As long as the buttons are pressed regularly, the radio operates normally. However, if there is a long lapse (programmable), it will sound an alert. And if the user does not respond to the alert, the TK-2402V/3402U will place an emergency call to a predetermined person or group.

Radio Stun


This function disables a lost or stolen radio over the air, eliminating security risks.

Independent Settings Per Channel(Vox, Compander, Scrambler)


Radio channels can be programmed independently for VOX, scrambler and compander functions. This means a user can switch a function on or off simply by changing channels (on the same frequency).

Built-In Voice Scrambler*


This feature provides basic protection against casual eavesdropping. Up to 16 of 2097 possible inversion frequencies can be chosen and assigned to any channel.

*This function cannot be used in certain countries. Please contact your KENWOOD dealer or further information.

Gps Connectivity


The KMC-48GPS Speaker Microphone provides an option for GPS tracking.

OTHER FEATURES

Priority Scan
Voice Annunciation
Password Protection
Talk Around
Busy Channel Lockout
Key Lock
4-color LEDs (blue, red, orange, green)
Scan Del/Add
Wireless Cloning
KENWOOD ESN (Electronic Serial Number)
Adjustable Microphone Gain (by FPU): High or Normal
Microsoft Windows® PC Programming & Tuning






IN STOCK!

Perfect Pager Radio At A Low Cost.



TK-23/3312P2



Now Includes KNB-45L Lithium Battery

The new TK-2312/3312 is thin and compact yet packed with features for intuitive operation, impressive performance, and all-weather reliability. Front and side programmable function keys allow for customized convenience, and Kenwood’s renowned audio clarity means the message gets through loud and clear.


UHF WIDE BAND COVERAGE


Offering extensive frequency coverage – 70MHz for UHF – the TK-2312/3312 is ideal for a wide range of applications.

128 CHANNELS / 128 ZONES


The 128-channel, 128-zone capacity is ample for any current or future requirement in any radio system.

5W OUTPUT POWER


Output is 5W for both VHF and UHF.

GPS CONNECTIVITY


Combined with the optional KMC-48GPS Speaker Mic, the TK-2312/3312 can function as a mobile station for Kenwood’s AVL system.

EASY OPERATION


All front and side keys can be assigned individual functions, allowing this radio to be customized for easy one-touch operation suited to specific requirements. It is also possible to directly input a channel number using a key assigned with that number (12-key keypad models only). The 8-character, 13-segment backlit LCD with icons and RSSI display makes channel information and FleetSync® messaging easy to read, day or night.

4-COLOR LED INDICATOR


In addition to the red/orange/green LED indicators, a blue LED has been added for quick visual confirmation.

PROGRAMMABLE VOICE INVERSION SCRAMBLER*


The built-in programmable voice inversion scrambler provides protection against casual eavesdropping.

*This function cannot be used in certain countries. Please contact your Kenwood dealer or further information.

SIGNALING


- QT / DQT / DTMF
- FleetSync® PTT ID, SelCall
- 2-tone (encode/decode)
- Built-in MDC-1200 signaling

FleetSync® and MDC-1200 signaling can be independently selected for each zone. Switching between them is as simple as changing zones.

EMERGENCY FUNCTION


For hazardous/hostile environments, side PF keys can be programmed for Emergency use to transmit an alert to a predetermined person or group using DTMF, FleetSync® or MDC-1200 signaling.

ROBUST & WATER-RESISTANT


The tough TK-2312/3312 has passed the demanding IP54/55 tests, even with the optional speaker microphone KMC-45 attached (locking bracket required). It also meets or exceeds 11 MIL-STD 810 C/D/E/F/G environmental standards, including “blowing rain”.

CLEAR & CRISP, ENHANCED AUDIO


As an experienced audio specialist, Kenwood has decades of expertise that is reflected in every Kenwood radio – from component selection and construction to optimization, evaluation and analysis. The resulting audio performance, specially engineered for transceivers, is undeniably clearer and crisper. Just listen to the difference.

OTHER FEATURES



-Analog Radio
-5Watt VHF and UHF Models
-Wide Band Coverage
136-174MHz Model
400-470MHz Model
450-520MHz Model
-128 Channels / 128 Zones
-GPS Connectivity (Combined with the optional KMC-48GPS Speaker Mic)

-9 PF KEYS Type and 6PF KEYS+12KEYPAD Type
-8Character, 13Segment Backlit LCD
-4Color LED Indicator (Red/Orange/Green/Blue)
-Programmable Voice Inversion Scrambler
-QT / DQT / DTMF Signaling
-FleetSync® PTT ID, SelCall
-2-tone (encode/decode)
-Built-in MDC-1200 Signaling
-Emergency Function
-IP54/55 Dust & Water Resistant
-MIL-STD 810 C/D/E/F/G environmental standards, including "blowing rain"
-Clear & Crisp, Enhanced Audio
-Radio stun
-Priority scan
-Channel / Zone delete & add
-Compander / VOX /Scrambler setting per channel
-VOX Ready
-Self-programming mode
-Compatible with TK-2212/3212 batteries

ALL MODELS IN STOCK!

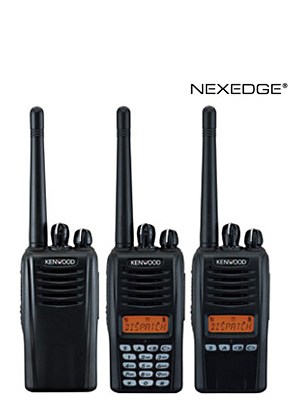

NX 220/320 SERIES

Ideal Unit For FD's Who Have Already Started To Migrate To Digital And Still Require Analog Paging

Main Unit Is Close To The Size Of A Pager


Kenwood is pleased to introduce the latest NEXEDGE® portables boasting a newly designed ultra-compact platform with all of the high performance RF specifications and MILSTD 810 & IP54/55 ruggedness of Kenwood’s flagship NEXEDGE® models. These new models come in three user interface configurations, including the first NEXEDGE® non-display model for users that need a limited number of channels or trunked talk groups.

NX-220/320 VHF&UHF 5W radios deliver a cost benefit, full-featured digital portable radio solution to enterprise, local government and SMR subscribers. True to the NEXEDGE multi-system migration-ready tradition, analog, NXDN® conventional, and NXDN® trunking, are included in all models. The NX-220/320 NEXEDGE® models include the latest V2.5 enhancements such as OTAP over-the-air programming and ground-breaking NEXEDGE® enhanced audio refinements.

- 5 W (136-174 MHz) Models
- 5 W (400-470, 450-520 MHz) Models
- 260 CH-GID / 128 Zones
- 64 CH-GID / 4 Zones (Non Display Version)
- 12-Key Keypad Models
- 8 Character Alphanumeric Aliases
- Backlit LCD and Keys
- Function/Status LCD Icons
- Transmit/Busy/Call Alert/Warn LED
- On/Off Volume Knob
- 16-Position Mechanical Selector
- 4 Front Programmable Keys
- 3 Side Programmable Keys
- Emergency/AUX Key
- Built-in Motion Sensor
- 500 mW Speaker Audio
- Zone/CH# Voice Announcement
- MIL-STD-810 C/D/E/F/G
- IP54/55 Water / Dust Intrusions
MODELS
-  Model Type 1: 1 to 5 W (136-174 MHz)
-  Model Type 2: 1 to 5 W (400-470 MHz)
-  RF Power Output: 5 W/1 W
-  Channel/Zone Capability: 260 CH / 128 Zones
-  12-Key Keypad Model: Optional
KEYS & SWITCHES
-  Front Keys: 4 PF Keys
-  Side Keys: 3 PF Keys
-  Emergency/AUX Key: Yes
-  On/Off Volume Knob: Yes
GENERAL FEATURES & PROGRAMMING
-  Function/Status LCD Icons: Yes
-  Alphanumeric Aliases: 8 Character
-  LCD Battery Status Indicator: -
-  Low Battery Alert: Yes
-  Battery Saver (NA in Scan or Trunking): -
-  Date, 12/24 Hour Clock: -
-  CSA Approved: -
-  Intrinsically Safe Option: -
-  CSA, A and B, I.S. Certified: -
-  Dimensions (W x H x D) - Radio Only: 2.20 x 4.35 x 1.48 in
-  Weight (net) - Radio Only: 10.76 oz w/ KNB-55L
-  Kenwood LTR Features: Yes
-  800 MHz: -
EMERGENCY & SAFETY FEATURES
-  MIL-STD: MIL-STD-810 C/D/E/F/G
-  IP-54/55 Water and Dust Intrusion: Yes
-  Immersion Option: -
DIGITAL
-  NXDN: Yes
-  P25: -
FleetSync®/II (FM)
-  FleetSync Capable: Yes

IN STOCK!

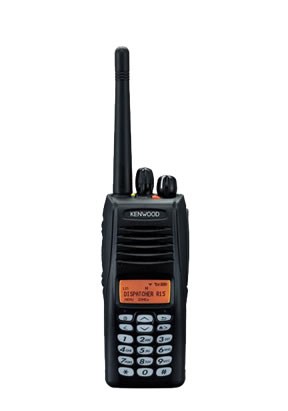

NX-210G -  Digital / Analog Radio

Frontline Firefighter / Officer Radio

GPS Coordinates Can Be Displayed On The Radio Display For LifeFlight And DNR Types of Calls


The new NX-210K2 portable is the latest addition to the NEXEDGE® lineup - designed specifically for users preferring a mid-size platform with a larger keypad. The NX-210K2 has the same NXDN® digital, analog, LCD display, PF key capabilities and transmit/receive specifications as the NX-200 and comes standard with a DTMF encoder with large backlit keys ideal for applications requiring frequent text messaging, selective signaling or interconnect.
Kenwood's NEXEDGE® portable models now come standard with internal GPS functionality. "NX-G-models" feature a built-in GPS module for NEXEDGE® or FleetSync® (analog) location applications. "NX-G-Models" still feature NEXEDGE® conventional and trunking technology featuring 6.25 kHz digital narrowband operation, meeting the needs of private enterprise and public sectors today and in the future.

 -5 W (136-174 MHz)
- 512 Channels / 128 Zone
- 14 Character Alphanumeric Aliases
- 4 Front Panel / 2 Side PF Keys
- Large 12-Key DTMF Keypad
- Built-in GPS Unit
- Emergency/AUX Key
- Analog Conventional
- Analog LTR Trunking
- FleetSync /II
- NXDN® Digital Conventional
- NXDN® Digital Trunking
- VOX Ready
- Cloning
- Date & 12/24 Hour Time Clock
- Lone Worker
- Flash Firmware Upgrading
- P25 Upgrade Option*
- Easy Option Port
- MIL-Spec Speaker Mic Option
- KMC-38GPS Speaker Mic Option
- MIL-STD 810 C/D/E/F
- MIL-STD "Driven Rain"
- IP-54/55 Wather & Dust Intrusion
- 3 Year Factory Warranty


IN STOCK

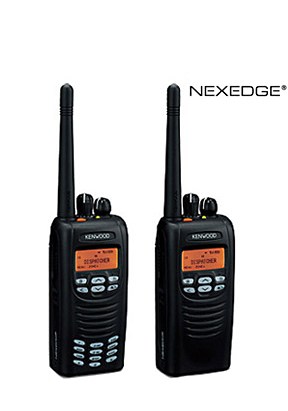

NX-200K

Frontline Firefighter / Officer Radio


BLACK OR YELLOW HOUSING AVAILABLE

Despite their compact lightweight design, these handheld radios are fully equipped for both digital and analog operating modes. The clear backlit display and ergonomic layout of the controls enhance operating ease, while the rugged MIL-STD construction ensures all-weather reliability.

Intrinsically Safe Certification

**OPTION**
CSA approved for Class I, Division 1, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III, Division 1: Class I, Division 2, Groups A, B, C and D.

- Note: G (GPS) model of NX-200/300 is not approved CSA Intrinsically Safe.

Features


- CSA, Class I; Division 1: Groups A, B
- 5 W (136-174 MHz) Models
- 5 W (400-470, 450-520 MHz) Models
- 512 CH-GID / 128 Zones
- 12-Key Keypad Models
- 14 Character Alphanumeric Aliases
- Backlit Dot Matrix LCD
- Function/Status LCD Icons
- Multi-Language Display
- Date, 12/24 Hour Time Clock
- Transmit/Busy/Call Alert/Warn LED
- On/Off Volume Knob
- 16-Position Mechanical Selector
- 6 Front Programmable and Menu Keys
- 2 Side Programmable Keys
- 500 mW Speaker Audio
- Emergency Call Features
- MIL-STD-810 C/D/E/F/G
- IP54/55 Water/Dust Intrusion
- Intrinsically Safe Option
- VGS-1 Voice Guide/ Voice & GPS Data Storage Option
- P25 Upgradeable
- MPT Options

General Features


MODELS
-  Model Type 1: 1 to 5 W (136-174 MHz)
-  Model Type 2: 1 to 5 W (400-470 MHz)
-  RF Power Output: 5 W/1 W, IS (2 W/1 W)
-  Channel/Zone Capability: 512 CH / 128 Zones
-  12-Key Keypad Model: Optional
KEYS & SWITCHES
-  Front Keys: 6 PF and Menu Keys
-  Side Keys: 2 PF Keys
-  Emergency/AUX Key: Yes
-  On/Off Volume Knob: Yes
GENERAL FEATURES & PROGRAMMING
-  Function/Status LCD Icons: Yes
-  Alphanumeric Aliases: 14 Character
-  LCD Battery Status Indicator: Yes
-  Low Battery Alert: Yes
-  Battery Saver (NA in Scan or Trunking): Yes
-  Date, 12/24 Hour Clock: Yes
-  CSA Approved: Yes
-  Intrinsically Safe Option: Yes
-  CSA, A and B, I.S. Certified: Yes
-  Dimensions (W x H x D) - Radio Only: 2.28 x 5.02 x 1.63 in
-  Weight (net) - Radio Only: 8.82 oz
-  Kenwood LTR Features: Yes
EMERGENCY & SAFETY FEATURES
-  MIL-STD: MIL-STD-810 C/D/E/F/G
-  IP-54/55 Water and Dust Intrusion: Yes
-  Immersion Option: -
DIGITAL
-  NXDN: Yes
-  P25: Optional
FleetSync®/II (FM) -  FleetSync Capable: Yes
