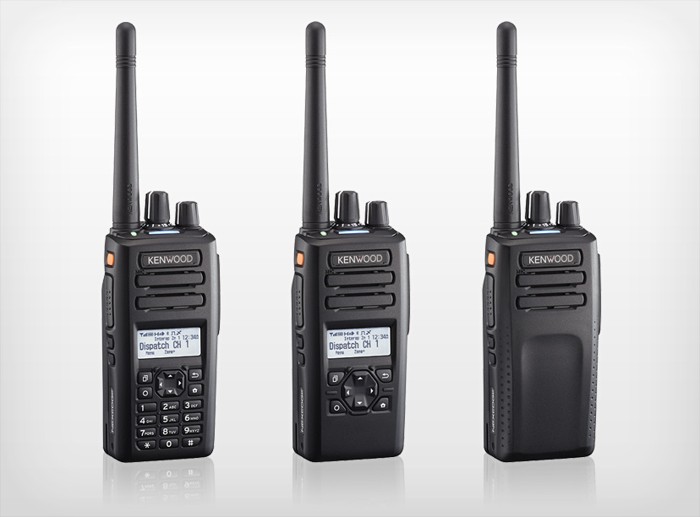

NX-3/3200K,K2,K3

  • VHF:136-174 MHz
  • Multi-protocol digital radio: Designed to operate under an NXDN or DMR digital, and FM analog protocols
  • NXDN Conventional and Type-C & Gen2 Trunking
  • DMR Tier III Trunking
  • DMR Auto Slot Select
  • Site Roaming
  • DMR Tier II conventional
  • Mixed Digital & FM Analog Operation allows gradual migration at your own pace
  • 7-color Light Bar Indicator on the top panel
  • 4-Line Basic Frame (2-Line Main/Sub - LCD, icon & key guide) / 14 Characters
  • 5-Line Text Message Frame (3 Lines of Text, icon & key guide)*1
  • 4-way Directional-pad (D-pad) for intuitive control and operation
  • Built-in GPS Receiver/Antenna for effective fleet management
  • Built-in Bluetooth for hands-free operation
    Applicable Bluetooth profiles: HSP(Headset Profile provided) and SPP (Serial Port Profile available as an option)
  • Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
  • Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols
  • Built-in Motion Sensor (Man-down, Stationary and Motion Detection)
  • Intrinsically Safe Option
  • IP54/55/67*2 and MIL-STD-810 C/D/E/F/G
  • Available models: Full Keypad (w/ LCD and full keypad), Standard Keypad (w/ LCD and 4-way large D-pad/4 key), and Basic (w/o LCD and keypad)
  • 14-pin Universal connector (2-pin connector models, NX-3220/3320, see below)

NX-3/320K,K2,K3

  • VHF:136-174 MHz
  • Multi-protocol digital radio: Designed to operate under an NXDN or DMR digital, and FM analog protocols
  • NXDN Conventional and Type-C & Gen2 Trunking
  • DMR Tier III Trunking
  • DMR Auto Slot Select
  • Site Roaming
  • DMR Tier II conventional
  • Mixed Digital & FM Analog Operation allows gradual migration at your own pace
  • 7-color Light Bar Indicator on the top panel
  • 4-Line Basic Frame (2-Line Main/Sub - LCD, icon & key guide) / 14 Characters
  • 5-Line Text Message Frame (3 Lines of Text, icon & key guide)*1
  • 4-way Directional-pad (D-pad) for intuitive control and operation
  • Built-in GPS Receiver/Antenna for effective fleet management
  • Built-in Bluetooth for hands-free operation
    Applicable Bluetooth profiles: HSP(Headset Profile provided) and SPP (Serial Port Profile available as an option)
  • Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
  • Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols
  • Built-in Motion Sensor (Man-down, Stationary and Motion Detection)
  • Intrinsically Safe Option
  • IP54/55/67*2 and MIL-STD-810 C/D/E/F/G
  • Available models: Full Keypad (w/ LCD and full keypad), Standard Keypad (w/ LCD and 4-way large D-pad/4 key), and Basic (w/o LCD and keypad)
  • 2-pin audio connector (14-pin Universal connector models, NX-3200/3300, see above)

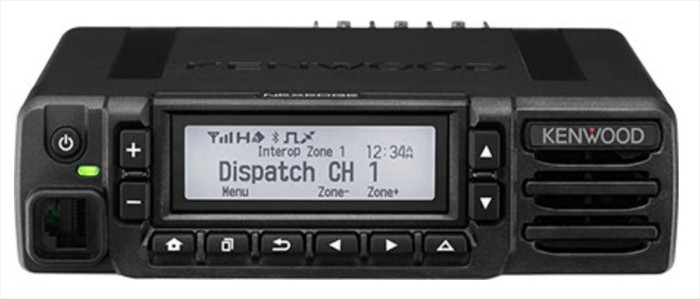

NX-3/8720HGK

  • VHF:136-174 MHz
  • Multi-protocol digital radio: Designed to operate under an NXDN or DMR digital, and FM analog protocols
  • NXDN Conventional and Type-C & Gen2 Trunking
  • DMR Tier III Trunking
  • S-Trunking (Ver. UP)
  • DMR Auto Slot Select
  • Site Roaming
  • DMR Tier II conventional
  • Mixed Digital & FM Analog Operation allows gradual migration at your own pace
  • 4-line Basic Frame (2-line Main/Sub-LCD, icon, & key guide) / 14 Characters
  • 4-Line Text Message Frame (2 Lines ofText, icon & key guide)
    Note: The number of lines may vary depending on the display language (character set).
  • 7-color LED indicator
  • External and Internal Speaker Switching
  • Built-in GPS Receiver module for effective fleet management (G model only Optional KRA-40G Required)
  • Built-in Bluetooth for hands-free operation(G model only)
    Applicable Bluetooth profiles: HSP(Headset Profile provided) and SPP (Serial Port Profile available as an option; availability depends on the model)
  • Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
  • Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols
  • MIL-STD-810 C/D/E/F/G
  • RF Power Output (High / Mid / Low): 50 W / 30 W / 5 W(H model only)
